[.NET MAUI] CommunityToolkit.Maui - DrawingView

DrawingView 는 간단한 그림판이라고 보면 됩니다.

간단한 그리기 기능이 들어가 있습니다. (색상, 선굵기, 배경, 그리기 완료 이벤트 등..)

DrawPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage
    x:Class="Maui.ToolKitMaui.DrawPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
    Title="Draw"
    BackgroundColor="White">
    <VerticalStackLayout>
        <Grid RowDefinitions="*,60,*">
            <toolkit:DrawingView
                Grid.Row="0"
                DrawingLineCompletedCommand="{Binding DrawingLineCompletedCommand}"
                HeightRequest="300"
                IsMultiLineModeEnabled="True"
                LineColor="Blue"
                LineWidth="5"
                Lines="{Binding DrawingLines}"
                ShouldClearOnFinish="false">
                <toolkit:DrawingView.Background>
                    <LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
                        <GradientStop Offset="0" Color="Gray" />
                        <GradientStop Offset="1" Color="White" />
                    </LinearGradientBrush>
                </toolkit:DrawingView.Background>
            </toolkit:DrawingView>

            <Button
                Grid.Row="1"
                Margin="10"
                Command="{Binding ClearCommand}"
                Text="Clear"
                WidthRequest="300" />

            <Image
                Grid.Row="2"
                Margin="10"
                HeightRequest="300"
                Source="{Binding ResultImage}"
                VerticalOptions="Center"
                WidthRequest="300" />
        </Grid>
    </VerticalStackLayout>
</ContentPage>

DrawPage.xaml.cs

namespace Maui.ToolKitMaui;

public partial class DrawPage : ContentPage
{
    public DrawPage()
    {
        InitializeComponent();

        this.BindingContext = new DrawViewModel();
    }
}

DrawViewModel.cs

using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Windows.Input;

using CommunityToolkit.Maui.Alerts;
using CommunityToolkit.Maui.Core;

namespace Maui.ToolKitMaui
{
    public partial class DrawViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

        ObservableCollection<IDrawingLine> drawingLines = null;
        /// <summary>
        /// 그려진 선들
        /// </summary>
        public ObservableCollection<IDrawingLine> DrawingLines
        {
            get
            {
                if (drawingLines == null)
                {
                    drawingLines = new ObservableCollection<IDrawingLine>();
                }
                return this.drawingLines;
            }
            set
            {
                this.drawingLines = value;
                OnPropertyChanged();
            }
        }

        ImageSource resultImage = null;
        /// <summary>
        /// 결과 이미지
        /// </summary>
        public ImageSource ResultImage
        {
            get
            {
                return this.resultImage;
            }
            set
            {
                this.resultImage = value;
                OnPropertyChanged();
            }
        }

        public ICommand DrawingLineCompletedCommand => new Command<IDrawingLine>((line) => OnDrawingLineCompletedCommand(line));

        /// <summary>
        /// 선긋기 완료시 이벤트
        /// </summary>
        /// <param name="line"></param>
        private async void OnDrawingLineCompletedCommand(IDrawingLine line)
        {
            await Snackbar.Make("Animation Command").Show();

            // 300 * 300 이미지로 처리
            var stream = await line.GetImageStream(300, 300, Colors.Gray.AsPaint());
            ResultImage = ImageSource.FromStream(() => stream);
        }

        public ICommand ClearCommand => new Command(() => OnClearCommand());

        /// <summary>
        /// 모두 지우기
        /// </summary>
        private void OnClearCommand()
        {
            DrawingLines.Clear();
        }
    }
}

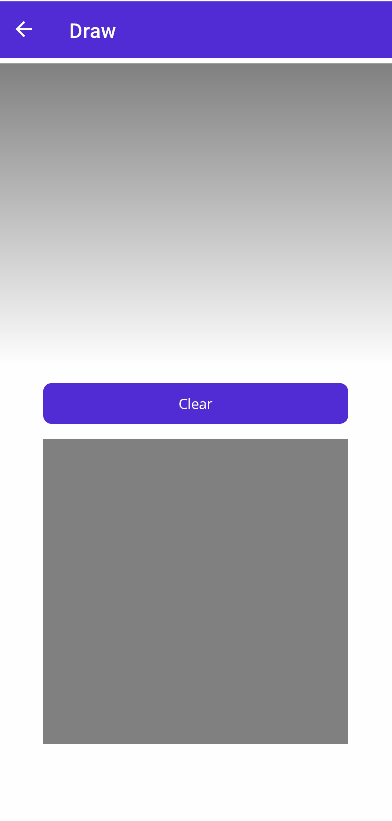

결과
(상단에서 그리면 아래에 이미지로 변환되어 나타납니다.)

[Source]
https://github.com/kei-soft/KJunBlog/tree/master/Maui.ToolKitMaui

GitHub - kei-soft/KJunBlog

참고
https://learn.microsoft.com/en-us/dotnet/communitytoolkit/maui/views/drawingview

DrawingView - .NET MAUI Community Toolkit - .NET Community Toolkit
